Google Mobile Ads

This guide shows you how to integrate our BlueStack mediation adapter of Google Mobile Ads SDK with your current Android app and set up additional request parameters.

Release notes can be found here

Supported ad formats

• Banners
• Interstitials
• Native Ads
• Rewarded Ads

Requirements

• Android SDK 4.4 (API level 19) or later
• Google Play services 21.1.0 or later

Google Ad Manager UI

The custom event must be defined in the Google Ad Manager UI.

1. Create a Yield groups

• Create an Ad Network

1. Click Admin > Companies
2. Select Ad network from New company option.
3. Create a Company with Madvertise Ad-Network name
4. Choose Appsfire network
5. Allow mediation

2. Add a Yield Group

1. Click Delivery > Yield groups
2. Click New yield group
3. Choose a name
4. Choose a format (You must create a Yield Group by format)
5. Choose at least one size according format
6. Target a specific placement

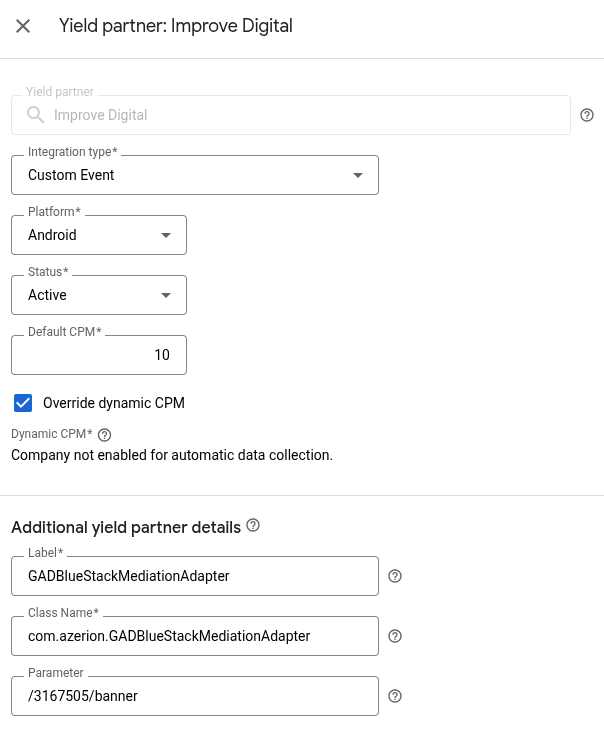

3. Add A Yield Partner and Define a custom event

On your Google Ad Manager UI, create a custom event

1. Click Delivery > Yield groups
2. Select the Yield group you have created on Step 2
3. Click Add yield partner
4. Select Madvertise Ad-Network created on Step 1
5. Choose Custom Event for Integration type
6. Choose your platform iOS or Android
7. Set the following Label, class Name and Parameter according your format :

• Banner : Label= GADBlueStackMediationAdapter, class Name= com.madvertise.GADBlueStackMediationAdapter and Parameter= /YOUR_APP_ID/PLACEMENT_ID_BANNER
• Interstitial : Label= GADBlueStackMediationAdapter, class Name= com.madvertise.GADBlueStackMediationAdapter and Parameter= /YOUR_APP_ID/PLACEMENT_ID_INTER
• Native Ad : Label= GADBlueStackMediationAdapter, class Name= com.madvertise.GADBlueStackMediationAdapter and Parameter= /YOUR_APP_ID/PLACEMENT_ID_NATIVEAD
• Rewarded Ad : Label= GADBlueStackMediationAdapter, class Name= com.madvertise.GADBlueStackMediationAdapter and Parameter= /YOUR_APP_ID/PLACEMENT_ID_REWARDEDAD

Integrate MNGAds in your application project

1. Set Up

a. Our Adapter

In the main build.gradle of your project, you must declare the Bluestack repository:

allprojects {
    repositories {
            google()
            mavenCentral()
    }
}

In the build.gradle of to your application module, you can now import the Bluestack Google Adapter SDK by declaring it in the dependencies section:

dependencies {
    implementation 'com.azerion:bluestack-sdk-core:5.0.2'
    implementation 'com.azerion:bluestack-gam-adapter:5.0.2.0'

}

b. Initialize the BlueStack Core SDK

See the Set Up Sdk Section

c. Bluestack Mediation

See the Mediation Partners

2. Initialize your ads

You can check our Demo page.

2.1 Banner and Interstitial

No additional code is required for integration.

You may now use MNG DFP Adapter to show Interstitial Ads and Banner Ads the same way it's described in the DFP Documentation.The adapter code and the setup you did on your Google Ad Manager UI will allow MNG Ads to deliver ads.

2.2 Native Ads

1. Assumes that your ad layout is in a file call ad_unit_dfp.xml for exemple in the res/layout folder.

2. Assumes you have a MAdvertiseNativeContainer in your View layout where the ad is to be placed.

    <com.mngads.views.MAdvertiseNativeContainer
            android:id="@+id/native_container"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"/>

3. The following code demonstrates how to build an AdLoader that can load native ads:

AdLoader adLoader = new AdLoader.Builder(context, "YOUR PLACEMENT ID")
                    .forNativeAd(nativeAd -> {

  					// This method sets the text, images and the native ad, etc into the ad view.

                        NativeAdView mAdView = (NativeAdView) getLayoutInflater()
                                .inflate(R.layout.ad_native, null);
                        displayNativeAd(nativeAd, mAdView);


                    })
                    .withAdListener(new AdListener() {
                        @Override
                        public void onAdFailedToLoad(@NotNull LoadAdError errorCode) {

                        // Handle the failure by logging, altering the UI...

                        }
                    })
                    .withNativeAdOptions(adOptions)
                    .build();

            AdManagerAdRequest.Builder adRequestBuilder = new AdManagerAdRequest.Builder();
            adRequestBuilder.addNetworkExtrasBundle(GADBlueStackMediationAdapter.class, getExtrasData());
            adLoader.loadAd(adRequestBuilder.build());

4. Once you have loaded an ad, all that remains is to display it to your users.

private void displayNativeAd(NativeAd nativeAd, NativeAdView nativeAdView) {

	/* Display Texts Ad */
		// Locate the text view
        TextView nativeAdTitle = nativeAdView.findViewById(R.id.nativeAdTitle);
        TextView nativeAdContext = nativeAdView.findViewById(R.id.nativeAdContext);
        TextView nativeAdCallToAction = nativeAdView.findViewById(R.id.nativeAdCallToAction);

		 // Set its text
        nativeAdTitle.setText(nativeAd.getHeadline());
        nativeAdContext.setText(nativeAd.getBody());
        nativeAdCallToAction.setText(nativeAd.getCallToAction());

		// Register it
	    nativeAdView.setCallToActionView(nativeAdCallToAction);
        nativeAdView.setHeadlineView(nativeAdTitle);
        nativeAdView.setBodyView(nativeAdContext);


	/* Display Icon Ad */

        if(nativeAd.getIcon()!=null)
        {
            if (nativeAd.getIcon().getUri() != null &&  !nativeAd.getIcon().getUri().toString().isEmpty()) {
                Glide.with(this).load(nativeAd.getIcon().getUri())
                        .into((ImageView) nativeAdView.findViewById(R.id.nativeAdIcon));
            }
            else
            {
                nativeAdView.setIconView(nativeAdView.findViewById(R.id.nativeAdIcon));
            }

        }
        else
        {
            nativeAdView.setIconView(nativeAdView.findViewById(R.id.nativeAdIcon));
        }

	/* Display Media Ad */

        if(nativeAd.getImages()!=null)
        {
            if (nativeAd.getImages().size() > 0 && nativeAd.getImages().get(0) != null ) {
                Glide.with(this).load(nativeAd.getImages().get(0).getUri())
                        .into((ImageView) nativeAdView.findViewById(R.id.nativeAdImage));
            }
            else
            {
                nativeAdView.setImageView(nativeAdView.findViewById(R.id.mediaContainer));
            }
        }
        else
        {
            nativeAdView.setImageView(nativeAdView.findViewById(R.id.mediaContainer));
        }


    // Register the NativeAdObject.
    nativeAdView.setStoreView(mMAdvertiseNativeContainer);
    nativeAdView.setNativeAd(nativeAd);

    // Ensure that the parent view doesn't already contain an ad view and place the AdView into the parent.
    frameLayout.removeAllViews();
    frameLayout.addView(nativeAdView);
}

2.3 Rewarded Ads

1. The following code demonstrates how to load a rewarded ad:

AdManagerAdRequest.Builder adRequestBuilder = new AdManagerAdRequest.Builder();
            adRequestBuilder.addNetworkExtrasBundle(GADBlueStackMediationAdapter.class, getExtrasData());

RewardedAd.load(context, DFP_REWARDED_AD_UNIT,
                adRequestBuilder.build(), new RewardedAdLoadCallback() {

@Override
void onAdLoaded(RewardedAd rewarded) {
  rewarded.fullScreenContentCallback = new FullScreenContentCallback(){

@Override
void onAdFailedToShowFullScreenContent(AdError adError) {
   // Handle the failure by logging, altering the UI...
 }
                        }
                    };
@Override
void onAdFailedToLoad(LoadAdError error) {
// Handle the failure by logging, altering the UI...
 }
                }
            );

2. Once you have loaded an ad, all that remains is to display it to your users.

private void displayRewardedAd(){
	mRewardedAd.show(activity, new OnUserEarnedRewardListener(){
	@Override
	void onUserEarnedReward(RewardItem var1){
	...
	}
	});
}

3. Custom targeting / Keywords

If you need to send your custom key-value pairs. You can specify key-value-targeting and keywords information in the ad request as follows:

AdManagerAdRequest request = new AdManagerAdRequest.Builder()
		.addKeyword("Keyword")
        .addCustomTargeting("key1", "value1")
        .addCustomTargeting("key2", "value2")
        .build();

and you must send your custom key-value pairs also as follows:

1- Create a bundle of the extras :

Bundle extras = new Bundle();
extras.putString("customTargeting","key1=value1;key2=value2");
extras.putString("keywords","key1=value1;key2=value2");

2- Add the extras to the addNetworkExtrasBundle() method as follows:

AdManagerAdRequest adRequest = new AdManagerAdRequest.Builder();
adRequest.addNetworkExtrasBundle(GADBlueStackMediationAdapter.class,extras)
.build();

The GADBlueStackMediationAdapter value corresponds to custom event adapter class name.
